SPT-1500鉆機

文字:[大][中][小] 手機頁面二維碼 2021/11/2     瀏覽次數:

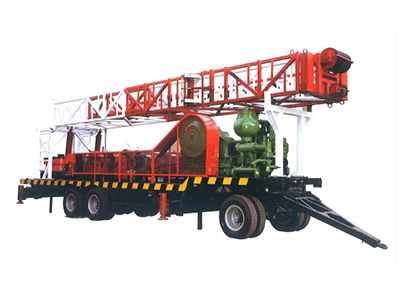

SPT-1500鉆機為全拖懸掛式,整體運輸方便。 機械傳動,轉盤回轉,傳動平穩;鉆機采用雙卷 揚結構,塔頭平移可使副卷揚中心自動對中,接 卸鉆桿方便快捷。鉆塔起降、伸縮液壓操作,鉆 機整體液壓支腿調平,孔口板液壓開合,省力便 捷;增加機械副支腿使鉆機更加安全、穩固。

本機適用于地質勘察、水井鉆井、地?zé)衢_發、 鹽井鉆進、地浸鈾礦開采、煤層氣開發等工程。


SPT-1500 drilling rig is trailer-type drilling rig and eady to transport.it is mechanical transmission and its rotary table rotate back and transmit very smooth.This rig adopts double winch structure and its tower head translation can make the auxuliary winch alignment automatically to the center.it is concenient to install and uninstall the drill rod The whole derrick is hydraulic landing, the whole rig hydraulic support leg adjust level and the plate is hydraulic open and close which is convenient; It also addmechanical auxiliary landing leg and make the drilling equipment more safe and stable.Mainly used in geological exploration, water well drilling, geothermal development, salt well drilling and coal-bed methane development project.


主要技術參數 Technical Specifications

鉆孔深度 Drilling Depth(m) 1500 1000
轉盤通役
Opening DtamGter of Rotary Tablo(mm)
660
轉盤轉速
RPM of Rotary Table ( r/min)
正反3752、84145
主卷揚提升能力
Hoist Capadtyol roaster WindXt)
9
副卷揚提升能力
Hoist Capacty of Auxftary Wnctxt)
4
主動鉆桿
Kelly {mm)
□108x108x10500
孔內鉆桿
Dnil Pipe ( mm )
φ 89x9500φ127x9500
相桿結構形式 Mast Structured n
有效高度
Effective Height ( m )
15.5
水龍頭負敏能力
Loading Capacity of Power Swivel (t)
75
游動滑車負裁能力
Loading Capacity of Traceling Block (t)
75
鉆機動力 Power ( kw) 110
泥漿泵型號 Mud Pump Model TBW1200/7
泥漿泵動力
Mud Pump Power ( kw )
110
整機重量 Weight (t) 35
外形尺寸Dimension ( m )
(運輸狀態)14.5x2.5x4.3
(工作狀態)11x3.7x15.7
